Corrosion Monitoring Systems

from Rohrback Cosasco Systems Inc. USA


Special Products

Cooling Water Treatment System

CORRATOR PROBE

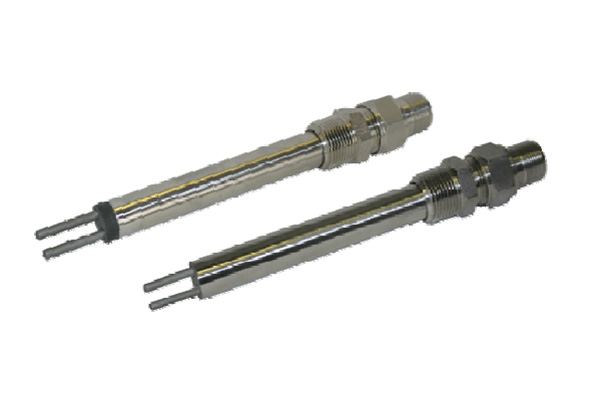

Model 7012/7022 CORRATER® Probe


Specifications:

  • Mounting — 3/4" NPT Adjustable
  • Temp. Rating — +300° F / +150° C
  • Pressure Rating — 500 PSI/3.4 Mpa
  • Electrode Seal Material — Glass Reinforced Epoxy/Viton(Model 7012) Glass/Viton (Model 7022)
  • Fill Material - Epoxy
  • Body Material - Stainless Steel

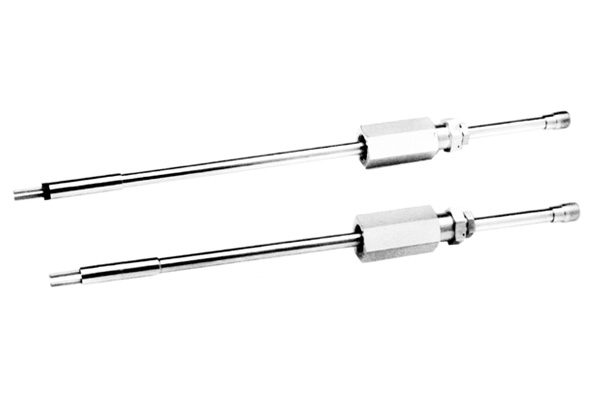

Model 8012/8022 CORRATER® Probe

Specifications:

  • Mounting - 1" Full Port Valve Minimum
  • Temp. Rating — +300 °F / +150 °C
  • Pressure Rating — 1500 PSI/10.3 MPa
  • Electrode Seal Material — Glass Reinforced Epoxy/Viton (Model 8012) (Glass/Viton (Model 8022)
  • Fill Material - Epoxy
  • Body Material - Stainless Steel

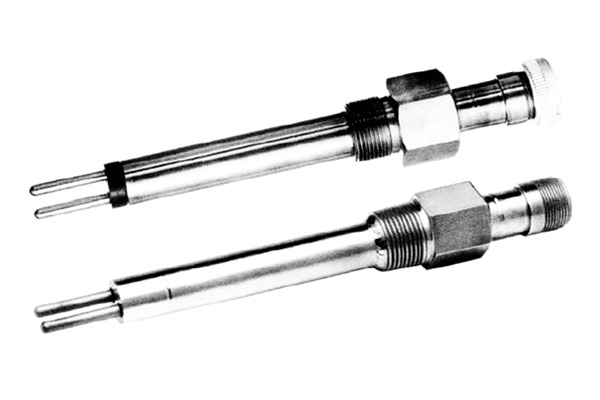

Model 6080 CORRATER® Probe HIGH PRESSURE TWO-ELECTRODE

Specification:

  • Mounting — COSASCO® 2" SYSTEM
  • Temp. Rating — +300 °F / +150 °C
  • Pressure Rating — 6000 PS1/41.3 MPa
  • Electrode Seal Material — Glass/Viton O-ring
  • Fill Material — Epoxy
  • Body Material — 316L S.S.

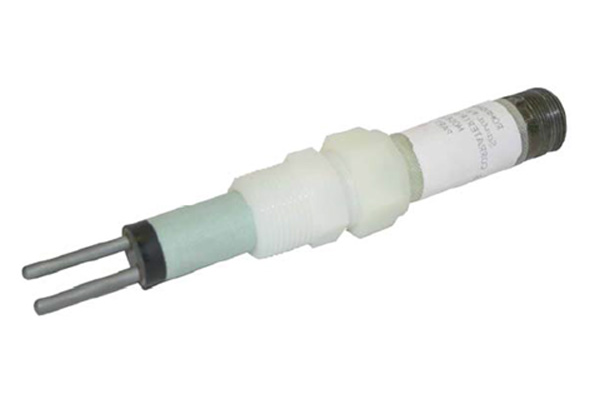

Model 6112 CORRATER® Probe

Specification:

  • Mounting — Optional Adjustable Nylon Swage Fitting
  • Temp. Rating — +300° F / +150° C
  • Pressure Rating — 100 PSI/690 kPa
  • Electrode Seal Material — Epoxy
  • Fill Material — Epoxy
  • Body Material — Glass Epoxy

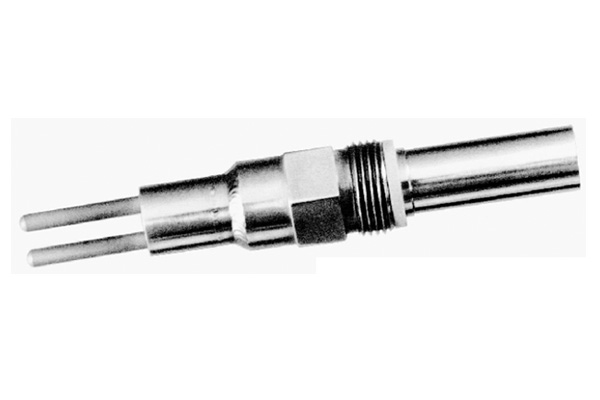

Model 7212/7222 CORRATER® Probe

Specification:

  • Mounting - 3/4" NPT Fixed
  • Temp. Rating — +300° F/ +150° C
  • Pressure Rating — 1500 PSI/10.3 MPa (Model 7212)
  • 4000 PSI/27.6 MPa (Model 7222)
  • Electrode Seal Material — Glass Reinforced Epoxy/Viton (Model 7212 ) Glass/Viton (Model 7222)
  • Fill Material - Epoxy
  • Body Material - Stainless Steel


CORRATOR Instrument

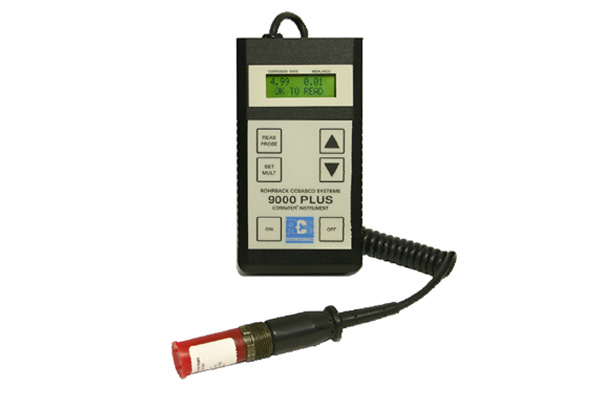

Model 9000 Plus Portable CORRATER® Instrument

Features:

  • Corrosion Rate Monitoring
  • Imbalance (Pitting) Measurement
  • User Selectable Alloy Multipliers
  • Simple Operation
  • CE Compliant

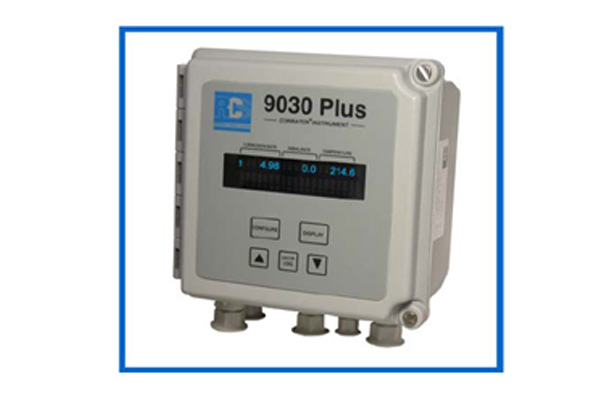

Model 9030 Plus CORRATER® Instrument

Features:

  • Corrosion Rate, Imbalance and Temperature Measurements
  • Soluction Resistance Compensation
  • One or Two Channels
  • Data Logging with CORRDATA® Plus Software
  • Isolated 4-20 mA Outputs
  • Weatherproof Enclosure
  • CE Compliant
  • The 9030 Plus Instrument's patented Solution Resistance Compensation uses Electrochemical Impedance Spectroscopy (EIS) to improve the accuracy and extend the range of Linear Polarization Resistance (LPR) corrosion monitoring.

Features of the software include:

  • Powerful graphical displays
  • Easy analysis to calculate average corrosion rates
  • Graph annotations
  • Easy transfer of graphs to word processing pro

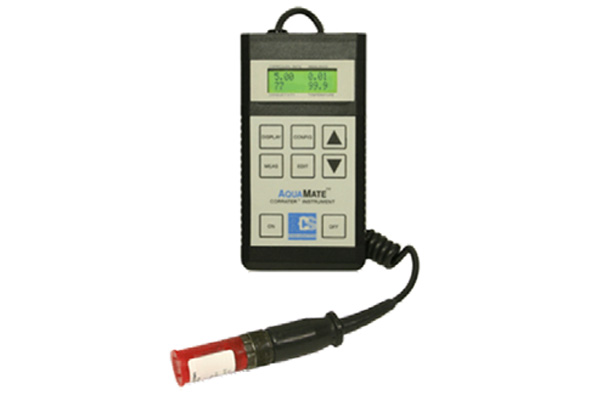

Model AquaMate Portable CORRATER® Instrument

Features:

  • Portable Corrosion Rate Monitoring
  • Imbalance (Pitting) Measurement
  • Solution Resistance Compensation
  • Temperature Measurement
  • CE Compliant

The AquaMate™ is your best answer to the problem of getting quick and easy corrosion rate measurements in water systems. It will display the corrosion rate in mils per year (MPY), the imbalance reading, conductivity.

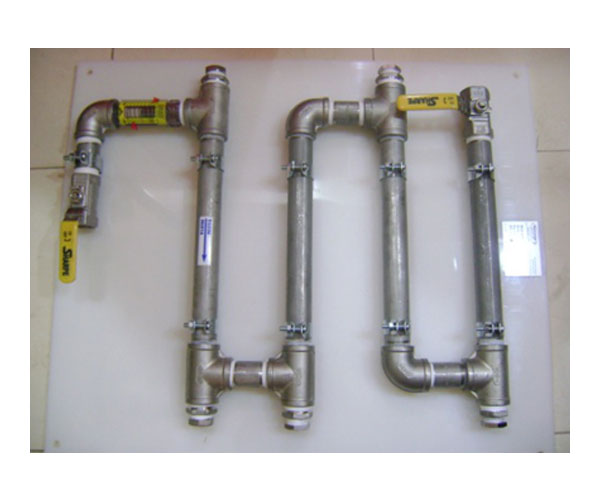

Corrosion Rack with Probe & Coupons:

Normally this is required to understand the effectiveness of chemical injected in water lines in Cooling water or Heat exchanger lines . The corrosion rack is a s type of tubing (either PVC or SS316) connected to a cooling water by-pass line. The Corrosion rack is having 4 standards mounting ports two for Corrosion Coupons + two for Corrosion probes. The user can install the probes and coupons on the corrosion rack to measure on-line corrosion rate.

Deposit & Corrosion Monitor:

This is a advanced system which is mainly used to evaluate / measure the corrosion in Heat-Exchanger tubes. The system simulates the heat exchanger conditions . It has a small heating tube furnace . The probes are mounted before and after the tube furnace. the corrosion rate is measured with respect the heat flux through the tube. The tailor -made software measures the corrosion rate with respect to change in heat flux which provides correct ides about the formation of Scales / deposits.
